1. Block Diagram
2. Platform Feature
2.1. Programmable Logic
lXilinx Zynq Ultrascale+ ZU17EG (XCZU17EG-xFFVC1760)
ü926K LCs
ü423K LUTs
ü847K Flip-Flops
ü28.0Mb Block RAM
ü28.7Mb Ultra RAM"
2.2. Main Processor
lQuad-core ARM Cortex-A53 MPCore up to 1.5GHz
lL1 Cache 32KB I/D per core, L2 Cache 1MB, on-chip Memory 256KB
2.3. Real Time Processor
lDual-core ARM Cortex-R4 MPCore up to 600MHz
lL1 Cache 32KB I/D per core, Tightly Coupled Memory (TCM) 128KB per core
2.4. External Memory
lPS LPDDR4
lPL DDR4 DIMM(UDIMM/RDIMM/LRDIMM) 2 slots: up to 32GB per slot
üEach DIMM slots can be configured as NAND module
2.5. High Speed Networking
l2x QSFP28 for 10G/25G/40G/50G/100G Ethernet
2.6. Host Connectivity
lPCIe Gen3 x16
2.7. Peripherals
l10/100/1000Mbps Ethernet
lUSB-UART (2x PS UART)
lUSB-JTAG (Digilent JTAG)
lMicroSD Card
2.8. Expansion Slot
lExpansion Con 1: 2x GTY QUAD
üCan be configured as PCIe Gen3 or Other HS IO
lExpansion Con 2: 4x GTH QUAD
üCan be configured as PCIe(x4/x8) or Other HS IO
2.9. NAND I/F
l2x DDR4 DIMM slots can be configured as NAND module
2.10. Form Factor
lPCIe Full-Height Add-On Card

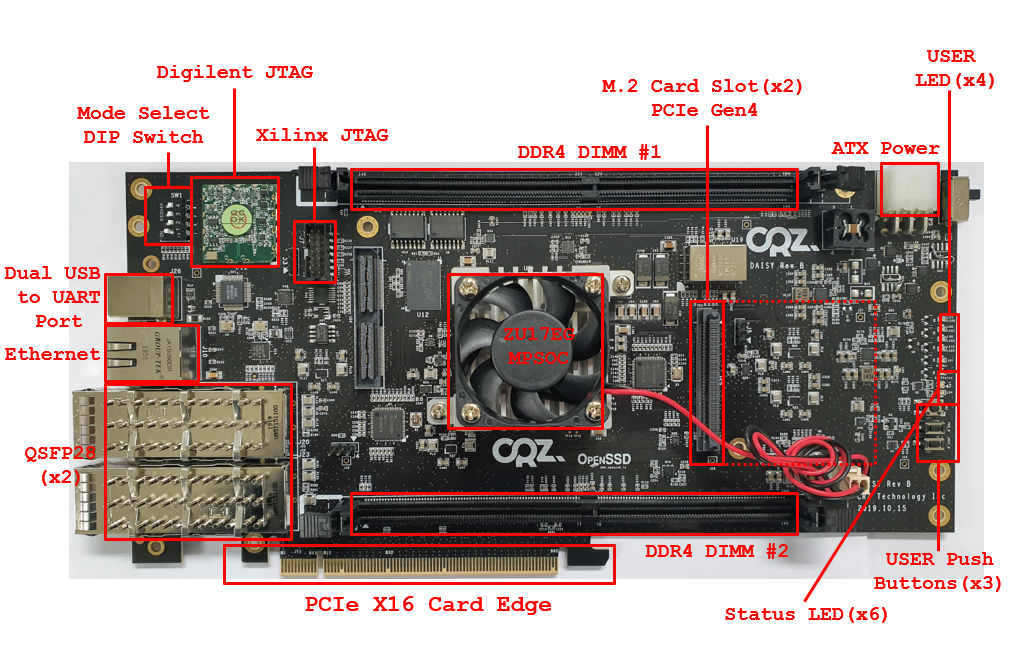

3. Daisy Physical Layout
4. Documents
5. Shipping Materials
l Daisy Openssd Board :
1ea
l AC/DC Adapter (12V/3A)
: 1ea
l DC Power Adapter
Converter Jack : 1ea
l USB A to B Type cable :
1ea
