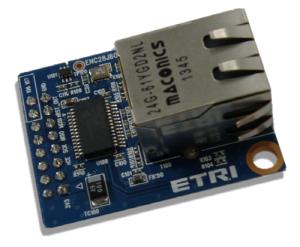

Compatible Mango-E-Toi MainBoard
l
IEEE 802.3 compatible Ethernet controller
l
Integrated MAC and 10BASE-T PHY
l
Receiver and collision squelch circuit
l
Supports one 10BASE-T port with automatic polarity detection and
correction
l
Supports Full and Half-Duplex modes
l
Programmable automatic retransmit on collision
l
Programmable padding and CRC generation
l
Programmable automatic rejection of erroneous packets
l
SPI™ Interface with speeds up to 10 Mb/s
l
Dimensions : 40mm(W) * 30mm(H)
| Continue reading | 2015-06-03 오후 12:05:30 |
l

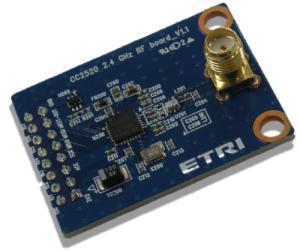

Compatible Mango-E-Toi MainBoard
l
RF frequency range 2394-2507 MHz Blocking Performance: 91 dB at 10
MHz
l
IEEE 802.15.4 compliant DSSS baseband modem with 250 kbps data
rate
l
Excellent receiver sensitivity (-98 dBm) –110 dBm at 50 kbps
l
Programmable output power up to +5 dBm
l
Dimensions : 40mm(W) * 30mm(H)
| Continue reading | 2015-06-03 오전 11:54:10 |

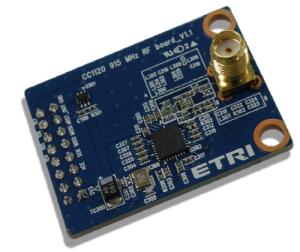

l Compatible Mango-E-Toi MainBoard
l Adjacent Channel Selectivity: 64 dB
at 12.5-kHz Offset
l Blocking Performance: 91 dB at 10 MHz
l Excellent Receiver Sensitivity
l –123 dBm at 1.2 kbps
l –110 dBm at 50 kbps
l –127 dBm Using Built-in Coding Gain)
l Suitable for Systems Targeting ETSI
Category 1 Compliance in 169-MHz and 433-MHz Bands
l High Spectral Efficiency (9.6 kbps in
12.5-kHz Channel in Compliance With FCC Narrowbanding Mandate
l Dimensions : 40mm(W)
* 30mm(H)
| Continue reading | 2015-06-03 오전 11:08:15 |

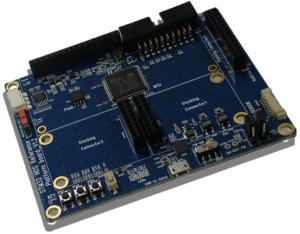

l Support MICRO USB (Download / Input Power)
l Compatible Mango-E-Toi 900MHz CC1120 Module
l Compatible Mango-E-Toi 2.4GHz CC2520 Module
l Compatible Mango-E-Toi Ethernet Module
l Interlligent processing with low-power high-performance 32bit Cortex-M3 MCU
l Input Voltage : 5V
l 5V DC Power jack
l Dimensions : 100mm(W) * 79mm(H)
| Continue reading | 2015-06-01 오후 8:47:58 |
