Compatible 5inch TFT LCD with Resistive Touch Screen Feature
l Compatible
5inch TFT LCD with
Resistive Touch Screen ( 800x480 )
l Support various resolutions
l BACKLIGHT PWM step-up DC/DC
Converters
l Dimension : 98.0mm(W) x 44.0mm(H)

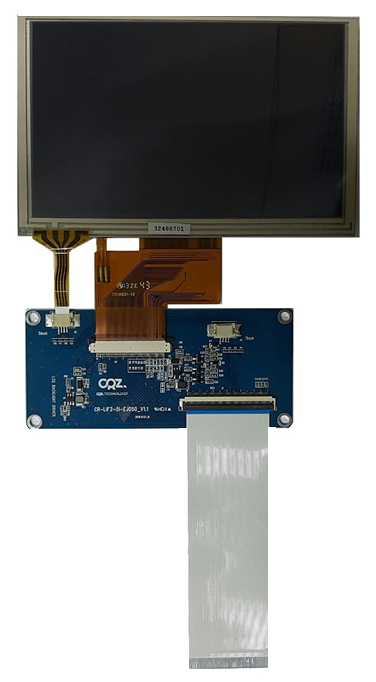

LCD 연결모습

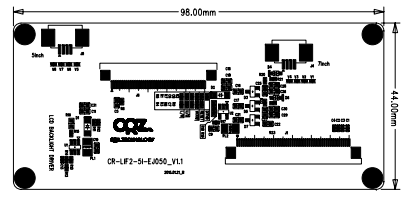

Dimensions

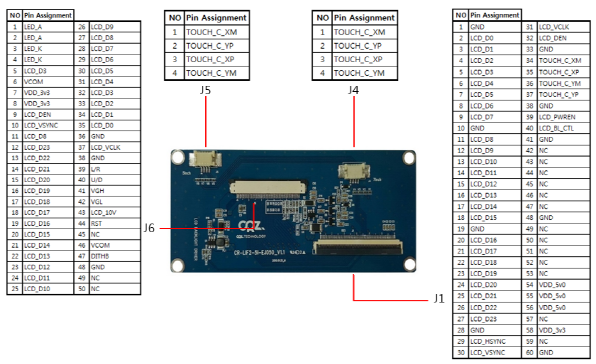

Pin Map
Supported Boards
l Mango220 Main Board
l Mango-AM335x-ST Main Board
Shipping Materials

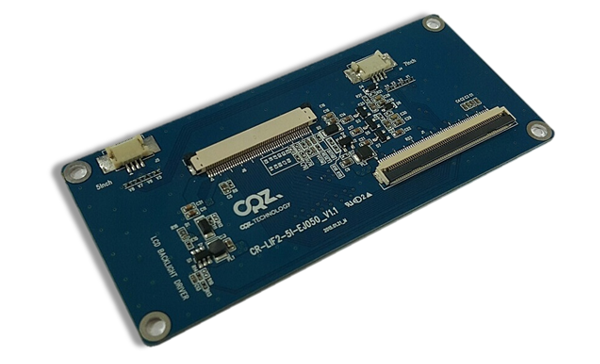

l LCD interface Board : 1ea
