[Wince] ARM926EJ-S S3C2450 Mango24R2 Wince 6.0 Fusing


1. How to Winnce 6.0 Fusing


source download : http://crztech.iptime.org:8080/Release/mango24R2_S3C2450/wince60/2012_0730/


NAND Node booting을 설정합니다.




전체 연결도는 아래와 같습니다. (FT2232 usb jtag, usb cable. 3pin serial, adapter 연결)



1. Openocd JTAG으로 Eboot 실행

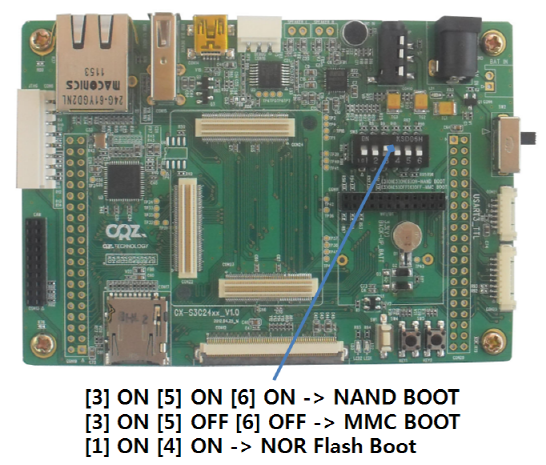

부팅 모드 (SD Boot) : 3번 ON


드라이버 설치 (FT2232 usb jtag)

Driver Download : http://www.ftdichip.com/Drivers/CDM/CDM20814_WHQL_Certified.zip


소스는 Mango24R2_OpenOCD_S3C2450_120723_eboot 압축을 풉니다.

>openocd.exe -f m24.cfg


실행 결과

Open On-Chip Debugger 1.0 (2009-04-30-01:48) svn:1547



BUGS? Read http://svn.berlios.de/svnroot/repos/openocd/trunk/BUGS



$URL: svn://svn.berlios.de/openocd/trunk/src/openocd.c $

Info : JTAG tap: s3c2450.cpu tap/device found: 0x07926f0f (Manufacturer: 0x787,

Part: 0x7926, Version: 0x0)

Info : JTAG Tap/device matched

Warn : no telnet port specified, using default port 4444

Warn : no gdb port specified, using default port 3333



Openocd.exe 파일이 있는 디렉토리에서 또 다른 도스 창을 실행 합니다.

$ telnet localhost 4444


Connect 되었다는 메시지를 확인 후

$ script m24.tcl


터미널 창에서 아래와 같이 메시지가 출력됩니다.

CLKOUT0:MPLL in, CLKOUT1:RTC clock.



+-----------------------------------------------+

| S3C2450X USB Downloader ver R0.0  20080221    +

+-----------------------------------------------+

mDDR

MPLL=800.00MHz, ARMCLK=400.00MHz (2:4:8), HCLK=133.33MHz, PCLK=66.67MHz


USB: IN_ENDPOINT:1 OUT_ENDPOINT:3

FORMAT: +++

NOTE: 1. Power off/on or press the reset button for 1 sec

        in order to get a valid USB device address.

     2. For additional menu, Press any key.


reset status register = 00000001

Power-on Reset

USB host is not connected yet.

USB host is connected. Waiting a download.

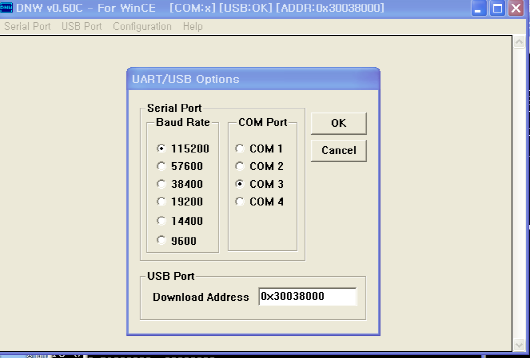

DNW Tool을 실행을 하고, Download address 주소를 0x30038000으로 설정




USB Port -> Transmmit

에서 Eboot.nb0 선택

실행이 되면


Ethernet Boot Loader Configuration:


0) IP address: 0.0.0.0

1) Subnet mask: 255.255.255.0

2) DHCP: Disabled

3) Boot delay: 5 seconds

4) Reset to factory default configuration

5) Startup image: DOWNLOAD NEW

6) Program disk image into SmartMedia card: Disabled

7) Program CS8900 MAC address (00:00:00:00:00:00)

8) KITL Configuration: ENABLED

9) Format Boot Media for BinFS

A) Erase All Blocks

B) Mark Bad Block at Reserved Block

C) Clean Boot Option: FALSE

D) Download image now

E) Erase Reserved Block

F) Low-level format the Smart Media card

L) LAUNCH existing Boot Media image

R) Read Configuration

U) DOWNLOAD image now(USB)

W) Write Configuration Right Now


“5,6 번 입력”


5) Startup image: LAUNCH EXISTING

6) Program disk image into SmartMedia card: Enabled

변경합니다.


“A) Erase All Blocks” 선택합니다. (처음 한번)


Stepldr.nb0 이미지 퓨징


“u” 입력합니다.


“DNW tool”에서 USB Port -> UBOOT-> UBOOT” 에서

“STEPLDR.nb0”

선택



Eboot.bin 이미지 퓨징

Openocd JTAG 으로 Eboot 실행” 실행 과정을 반복


“u” 입력 후


“DNW tool”에서 USB Port -> UBOOT-> UBOOT” 에서

EBoot.bin 선택

Enter your selection: u

System ready!

Preparing for download...

INFO: *** Device Name 'SMDK24500' ***

Please send the Image through USB.


BL_IMAGE_TYPE_UNKNOWN



Download BIN file information:

-----------------------------------------------------

[0]: Base Address=0x0  Length=0x1000

-----------------------------------------------------

dwStartAddr:0x00000000, dwLength:0x4096

OEMVerifyMemory: Stepldr image

ImageStart = 0x0, ImageLength = 0x1000, LaunchAddr = 0x0


Completed file(s):

-------------------------------------------------------------------------------

[0]: Address=0x0  Length=0x1000  Name="" Target=RAM

dwImageLength = 0x1000

dwNumBlocks = 0x1

dwBlock(0x0) X g_FlashInfo.wSectorsPerBlock(0x40) = 0x0

INFO: Step loader image stored to Smart Media.  Please Reboot.  Halting...





NK.bin 이미지 퓨징

Openocd 창은 Dos 창은 모두 닫습니다.  (FT2232 usb JTAG 은 연결을 해제)


NAND Mode로 부팅

“F, 9” 선택


“DNW tool”에서 USB Port -> UBOOT-> UBOOT” 에서

“NK.bin” 선택

Enter your selection: u

System ready!

Preparing for download...

INFO: *** Device Name 'SMDK24500' ***

Please send the Image through USB.


BL_IMAGE_TYPE_BIN



Download BIN file information:

-----------------------------------------------------

[0]: Base Address=0x80200000  Length=0x2483C78

-----------------------------------------------------

dwStartAddr:0x80200000, dwLength:0x38288504

OEMVerifyMemory: RAM image

rom_offset=0x0.

ImageStart = 0x80200000, ImageLength = 0x2483C78, LaunchAddr = 0x80205F40


Completed file(s):

-------------------------------------------------------------------------------

[0]: Address=0x80200000  Length=0x2483C78  Name="" Target=RAM

ROMHDR at Address 80200044h

+WriteOSImageToBootMedia: g_dwTocEntry =1, ImageStart: 0x80200000, ImageLength: 0x2483c78, LaunchAddr:0x80205f40

[226] Module Name: nk.exe

INFO: OEMLaunch: Found chain extenstion: '' @ 0x80200000

Writing single region/multi-region update, dwBINFSPartLength: 38288504

#### SECC1 Uncorrectable error(0x61c0) ####

#### NAND_LB_ReadSectorInfo ECC_Correct_Spare1 Error

#### SECC1 Uncorrectable error(0x1afc0) ####

#### NAND_LB_ReadSectorInfo ECC_Correct_Spare1 Error




완전히 부팅할 때까지 기다립니다.
